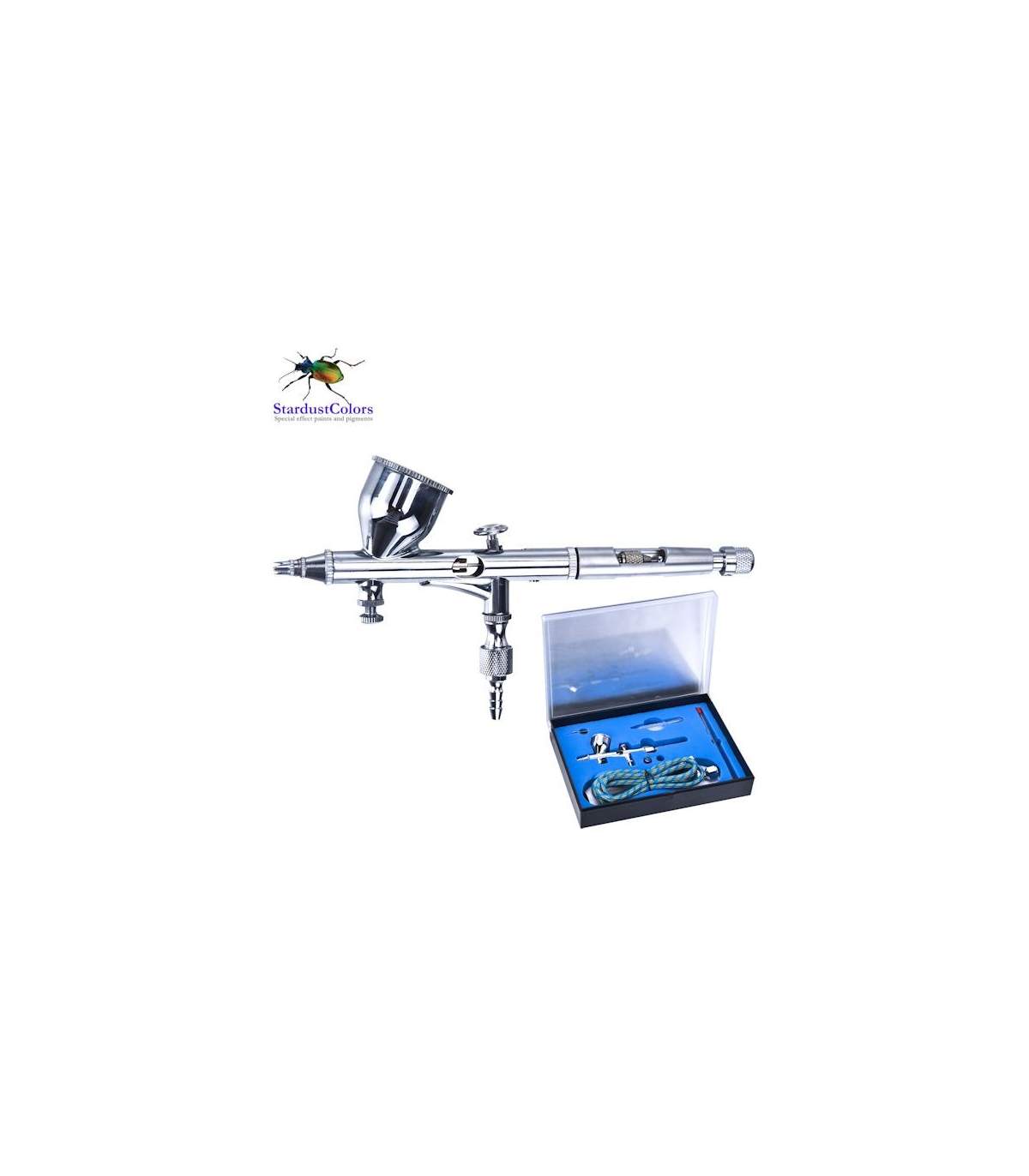

Gravity airbrush 180

Discover the AB180 airbrush alone or in kit

Stardustcolors has selected two models of double action* quality airbrushes :

The efficiency of the 180 and 182 series are recognized since many years. These tools are reliable and robust. They are suitable for novices as well as for skilled professionnals, by bringing them the best value for money.

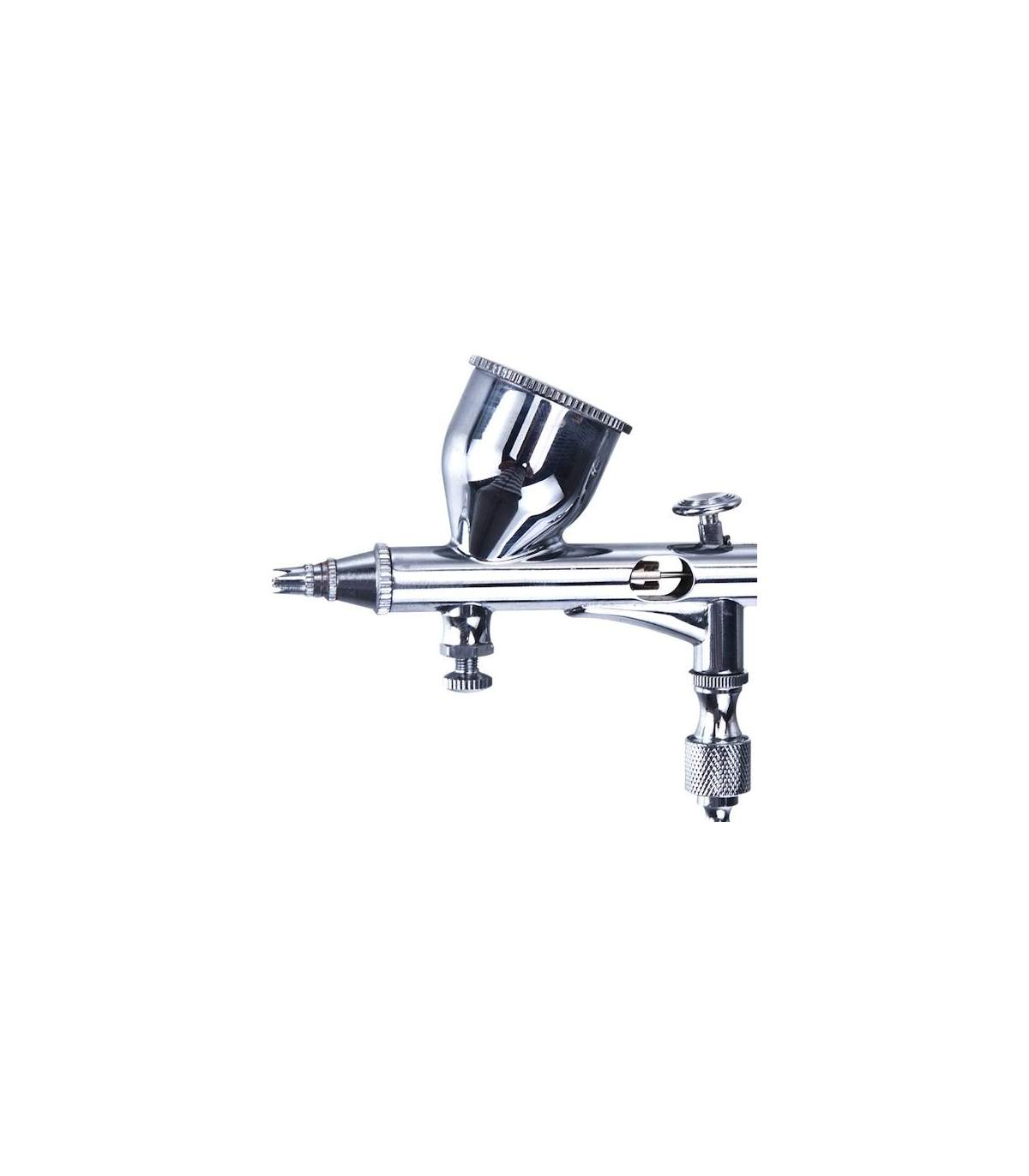

Gravity airbrush have a cup on the top : They are usually destinated to paint details, with small amount of paint needed.

180 and 182 airbrushes are recommanded for automotive paint (solvent)

Double action* : Spraying is managed by the double movement of the pusher :

Thrust : Release of air from the compressor

Pulling the pusher backwards : Gradual release of paint flow.

Complete and simple Airbrush 180 kit : delivered in 0.2mm nozzle

Areas of application : Automotive, graphic arts, skin tanning, pastry...

An air source is necessary : For this we use an air compressor

Find by clicking on the image below, our entire range of compressors

Video - Dismantling the airbrush and reassembling another needle/nozzle :

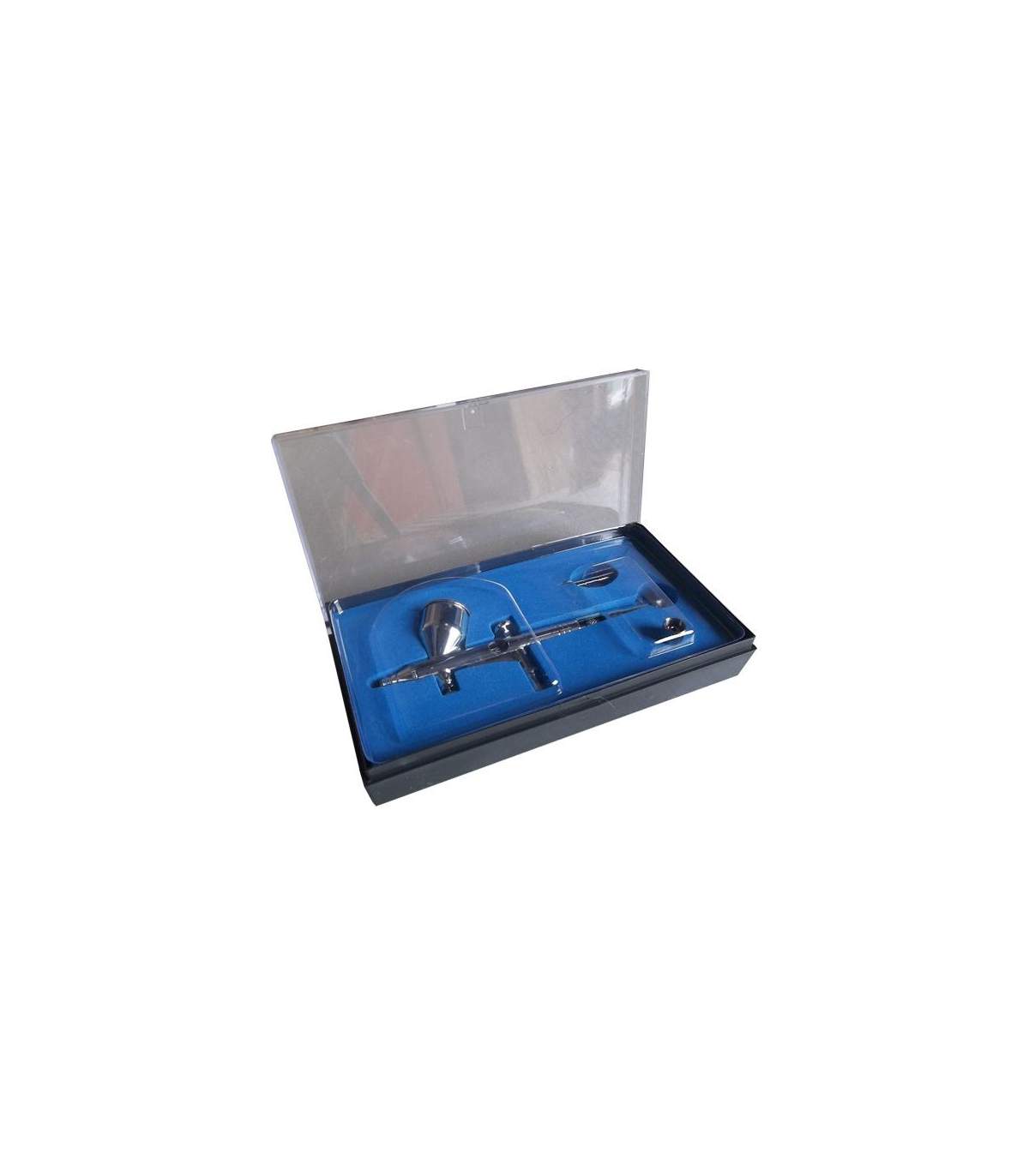

Included in the simple kit :

An AB180 gravity airbrush mounted in 0.2mm (1/8 'male outlet)

+ disassembly key

+ 2ml pipette

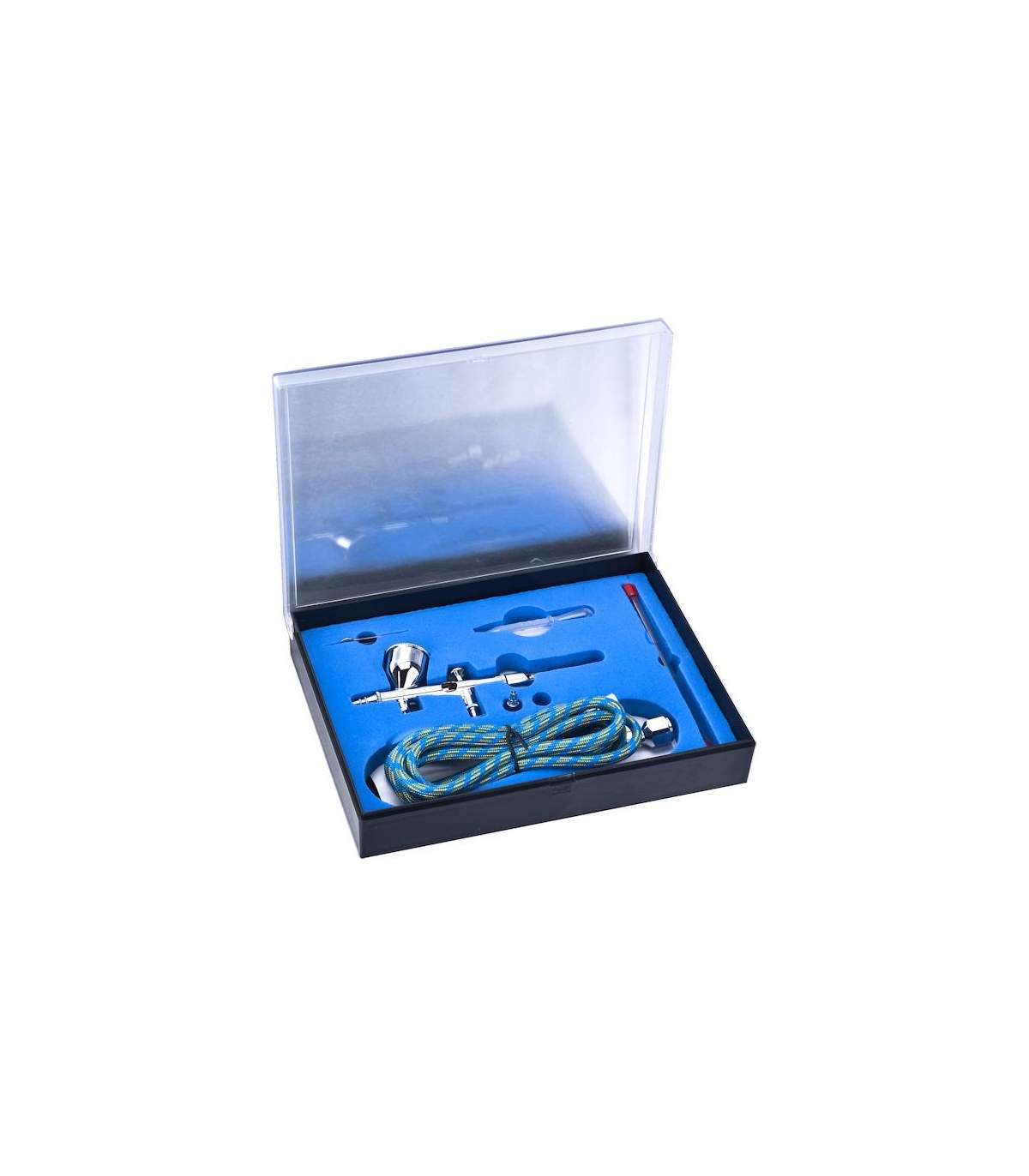

Included in the complete kit :

Simple kit

+ embroidered hose 1.8m

+ 1/8 male to 1/4 female adapter

+ Needle kit and 0.3mm nozzle

Spare parts : StardustColors offers each spare part individually.

Characteristics :

Operation : Gravity

Adaptable nozzle diameter : 0.2, 0.3mm

Adaptable needle diameter : 0.2, 0.3mm

Bucket capacity : 7 cc Working pressure : 1 - 3.5 bars

Spanner : 9 PC

Air hose : 1.8m embroidered PDA-TUY

the pneumatic hoses of the 180/182 airbrushes are fitted with a "female" screw with 1/8' thread size

find the quick connectors here

with the ZBM-14 quick coupling, to connect to all types of large compressors.

Warning : Do not tighten the nozzles too hard when screwing : Their ultra-fine thread can break if you use force. In this case you must then change the part.

Question : I use my airbrush with water-based paints, and it is clogged, what should I do ?

Answer : There are different levels of flushing and troubleshooting.

We must do each level gradually if the problem is not resolved.

The test : getting the water out 100% correctly

1/ rinse with water and partially remove the needle, slide it in and out, to unclog the nozzle

2/ gently remove the nozzle, blow, tap, to dislodge the blocked grain, clean the tip of the nozzle with your finger. Screw everything back together and rinse with water.

3/ Disassemble the entire airbrush, and check, wash each part, dislodge the paint in the ducts. Reassemble and spray with water.

Once you have thoroughly cleaned the airbrush, you sometimes need to dilute the paints a little more so that the clogging does not start again.

From time to time it is necessary to dislodge the paint which dries and accumulates.

you must rinse with water regularly and never let the airbrush dry, you must leave it with water contained when it is left out of use
