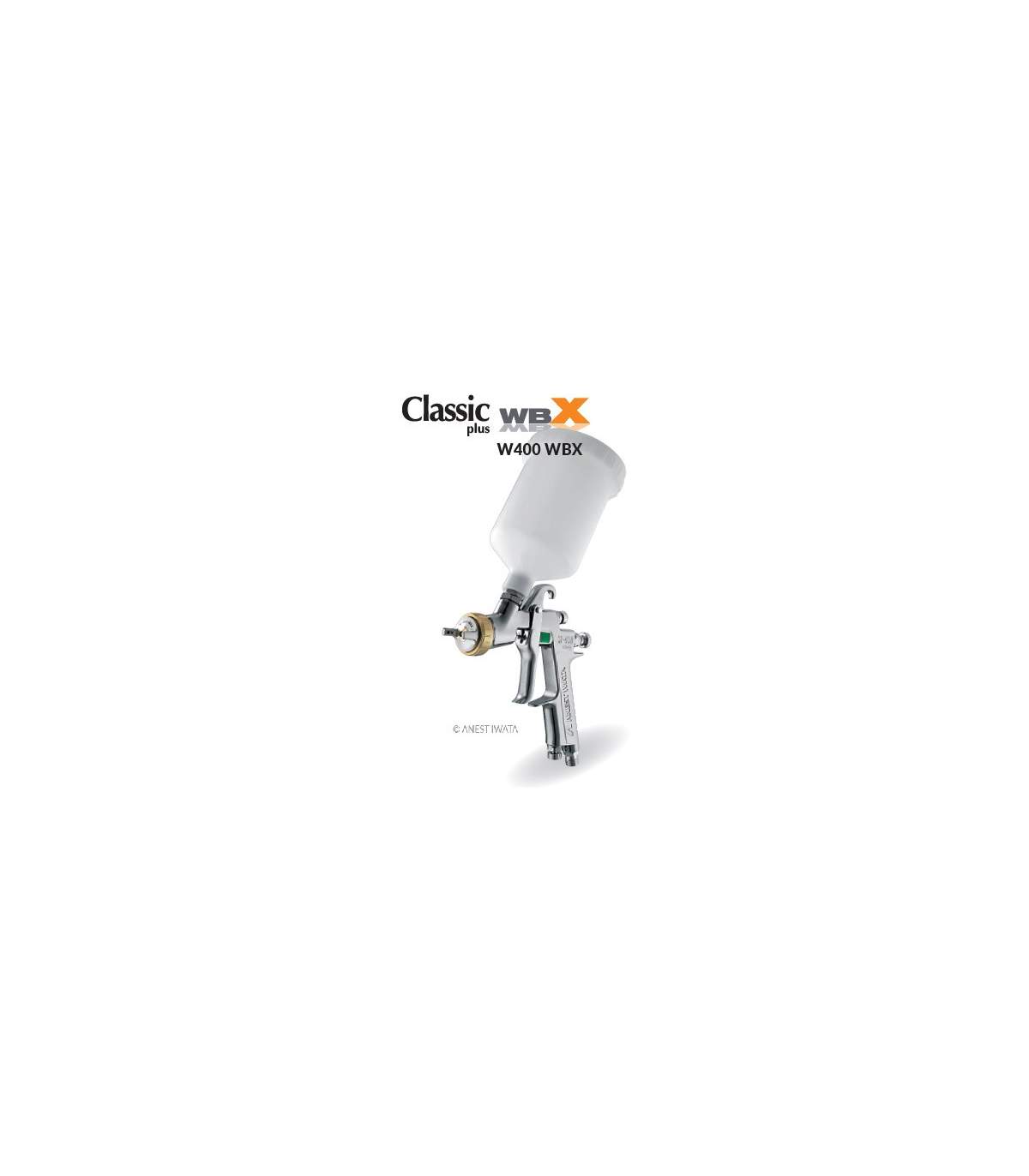

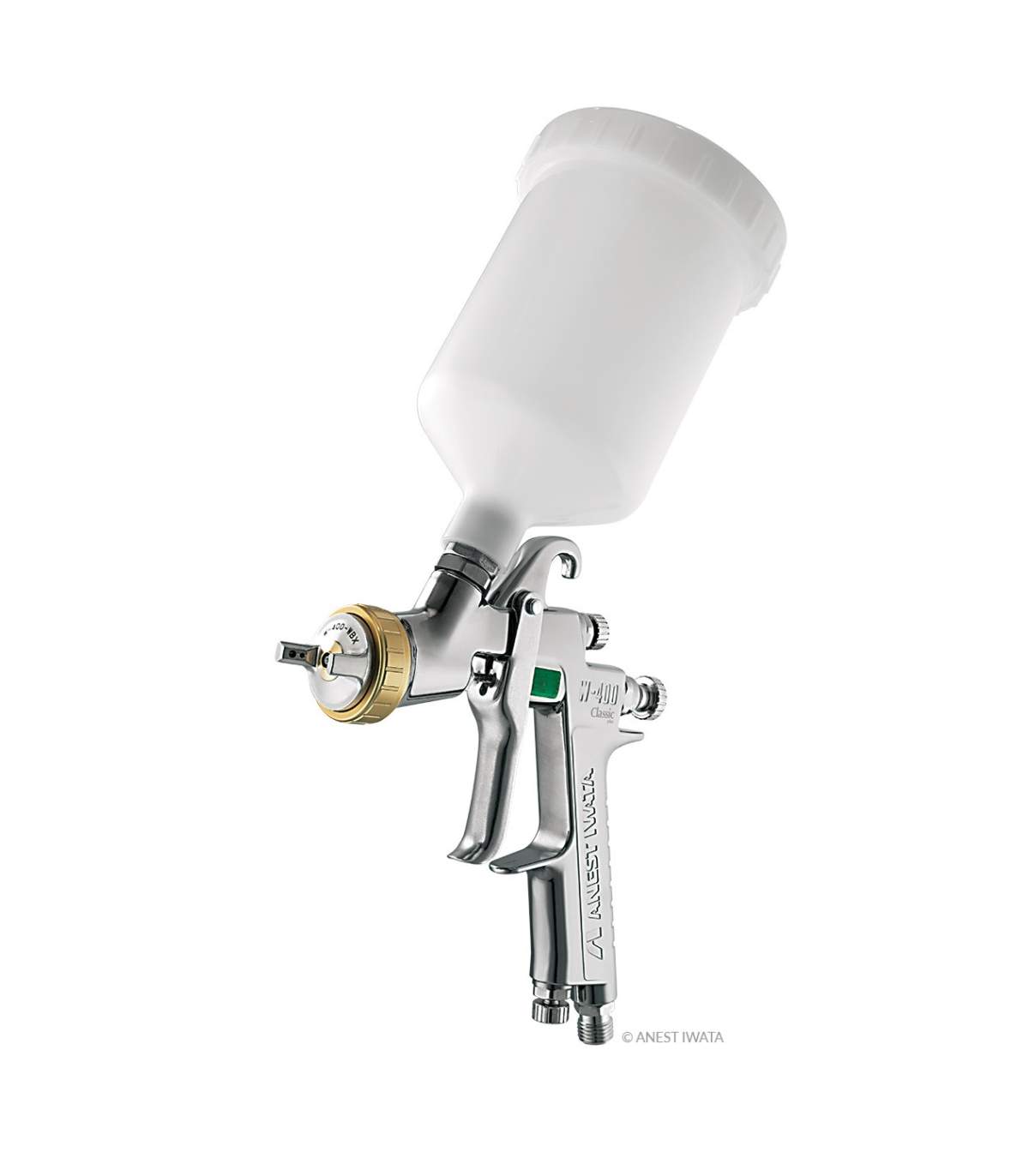

W-400 WBX - IWATA Gun for Bases

The W-400 WBX is ideal for painting all water- or solvent-based basecoats thanks to its low pressure HVLP.
This high-end gravity feed spray gun is ideal for achieving perfect stretched bases.

The gun spray from the IWATA range is quite unique, it ensures consistency over its whole height and provides unmatched finesse.
The spray gun is equipped with a 4 fin-nozzle (IWATA patented) which enables it to achieve a transfer efficiency >80%.

The maintenance and cleaning of the W-400 WBX is facilitated by its chrome body and its stainless steel fluid passage.
The fact that there is no seal between the gun body and the nozzle provides increased reliability.
The spray gun ergonomic handle is designed to reduce the user feeling of tiredness.

Package contents:
- W-400 WBX
- 600ml Bucket
- Cleaning Brush
- Removal key
- Quick Connect

Technical informations:

- 1.2mm, 1.3mm or 1.4mm nozzle (choose from the drop-down menu)
- PC-G600P-2, 600ml Bucket
- Weight: 380g (without bucket)
- Air connection and product connection: G1/4"
- Dynamic air pressure trigger open: 1.8bar
- Product flow rate: from 150ml to 200ml per minute
- Spray width: Wide jet distribution of almost 40cm

You can find all our gun fittings.
